AC CORDSET 3.68~7.4kW

Name: AC CORDSET 3.68~7.4kW
SKU: 3741
Availability: InStock

In Stock

₹0.00

In Stock

Enquiry Now

Add to wishlist Compare

Categories: DC Chargers, EV Chargers, Power Products

Compact, On-the-Go Charging
High-Performance Design
Powerful and Flexible Charging
Universal Compatibility

Description

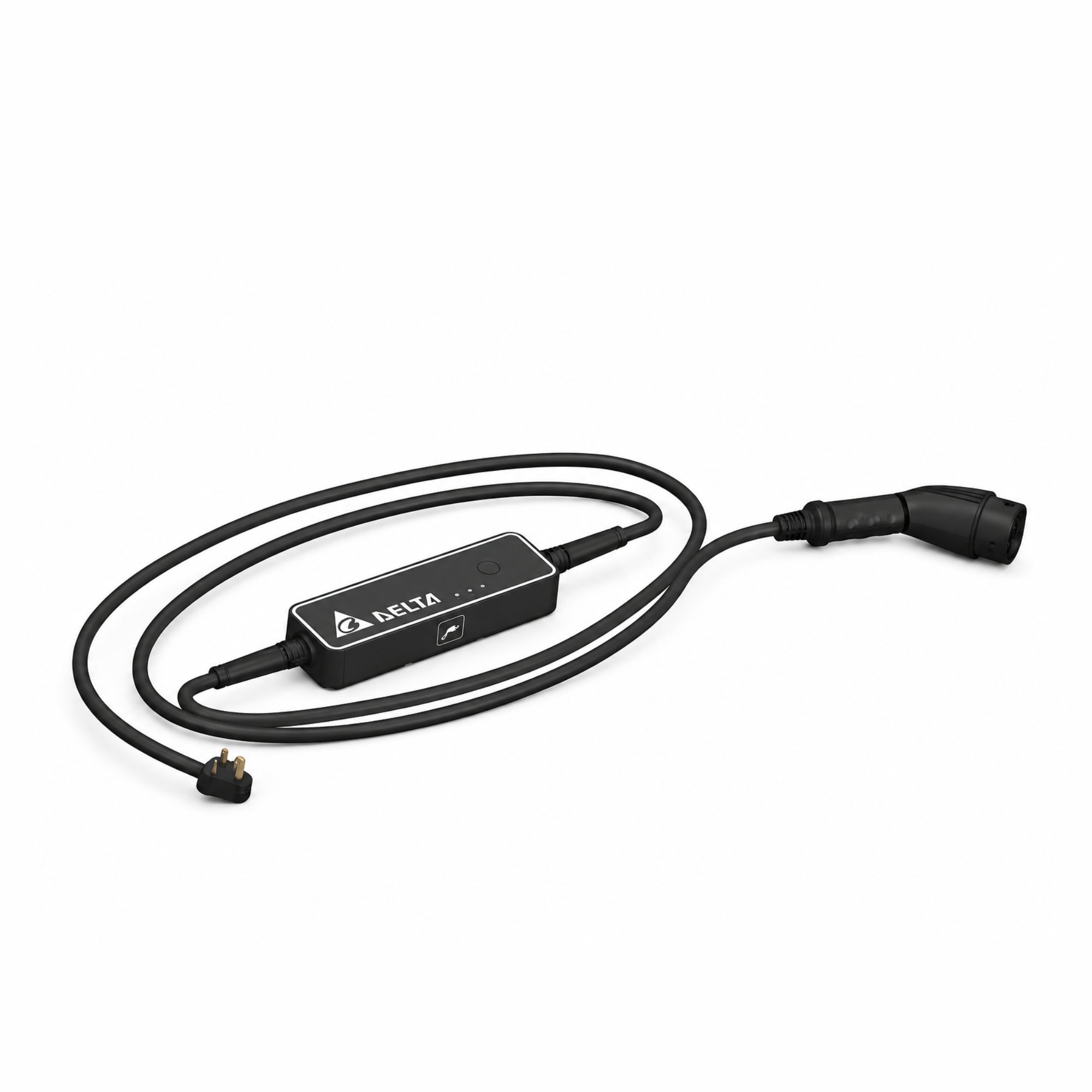

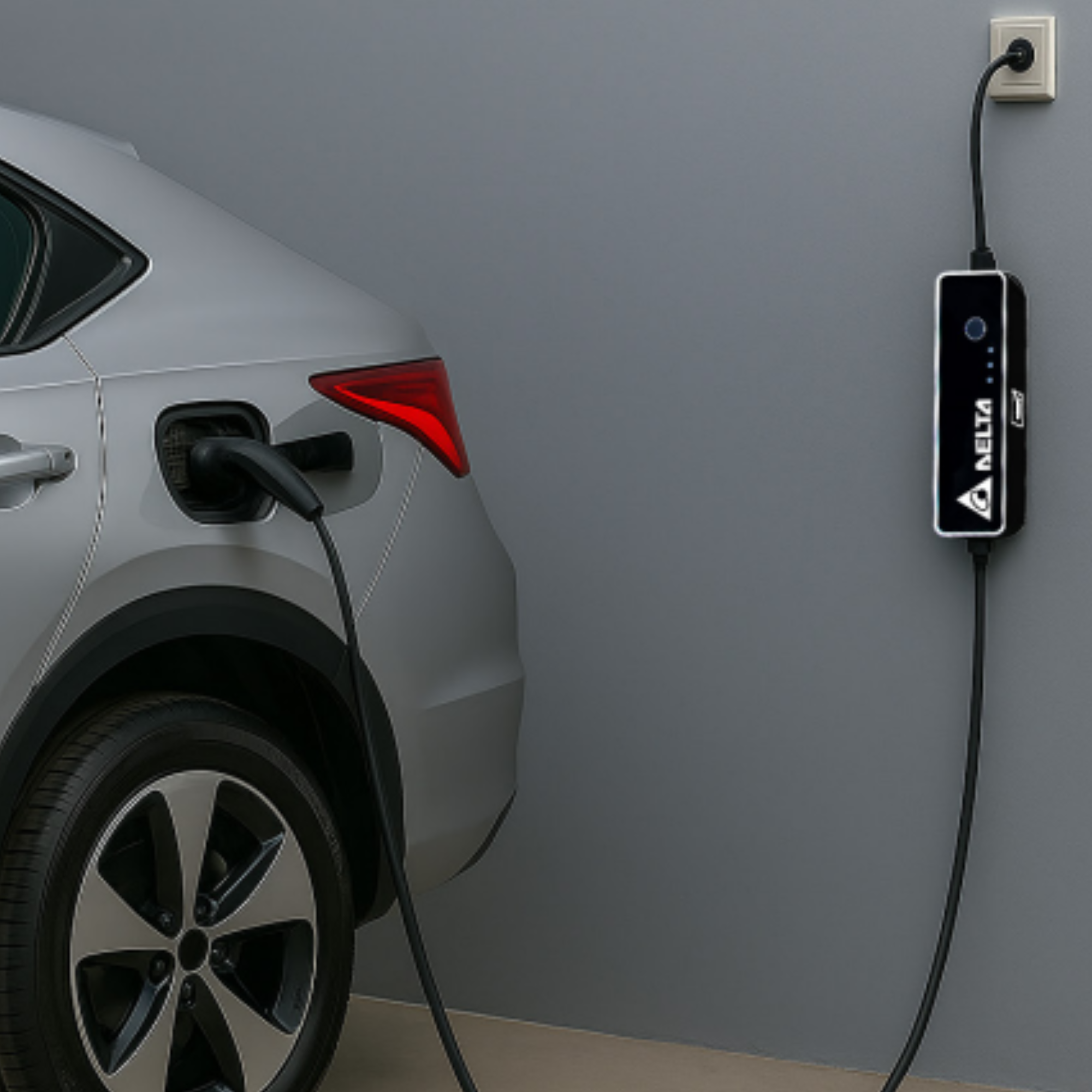

Delta AC Cordset Charger is a portable and user-friendly EV charging solution designed for maximum convenience and flexibility.

Its compact, lightweight design makes it ideal for on-the-go charging across urban, commercial, and residential environments The charger supports universal compatibility with Type-2 EVs and delivers up to 7.4kW output, ensuring efficient charging anytime, anywhere.

With built-in safety features and compliance with ARAI standards, Delta AC Cordset Charger ensures reliable operation across diverse indian conditions, offering EV users a seamless and dependable charging experience without the need for fixed installations.

Specification	3.68 kW	7.4 kW
Power Input
Nominal Current	6 / 16 A	6 / 16 / 32 A
Grid Connection	3 Wires: L, N, PE	3 Wires: L, N, PE
AC Voltage	Single Phase, 90–305 Vac	Single Phase, 90–305 Vac
Input Frequency	50 Hz	50 Hz
Input Plug	M Type Male (Indian Standard) / IEC60309 (Industrial Socket)	M Type Male (Indian Standard) / IEC60309 (Industrial Socket)
Power Output
Number of Outputs	1	1
Output Connector	IEC62196-2 (Type-2)	IEC62196-2 (Type-2)
Output Current	6 / 16 A	6 / 16 / 32 A
Output Rating @230V	1.38 kW / 3.68 kW	1.38 kW / 3.68 kW / 7.4 kW
Protection
Protection	Over Voltage, Under Voltage, Over Current, Short Circuit, Surge Protection, Over Temperature, Ground Fault, Residual Current	Same
User Interface
Status Indicator	Power, Charging, Fault	Power, Charging, Fault
Connectivity	Bluetooth (Optional)	Bluetooth (Optional)
Environment
Operating Temperature	-30°C to 55°C	-30°C to 55°C
Storage Temperature	-40°C to 85°C	-40°C to 85°C
Altitude	≤3000 Mtr.	≤3000 Mtr.
Humidity	<95%, Non-Condensing	<95%, Non-Condensing
Mechanical
Ingress Protection	IP67 Enclosure	IP67 Enclosure
Cooling	Natural	Natural
Weight	<3.72 kg	<3.72 kg
Dimensions (L × W × H) (Tolerance: ±5 mm)	290 mm × 114 mm × 61 mm (Excluding Connectors & Cables)	290 mm × 114 mm × 61 mm (Excluding Connectors & Cables)
Overall Rope-set Length	5 m	5 m
Regulation
Certification / Compliance	ARAI Certified (Under Process)	ARAI Certified (Under Process)
